Experience next-level Motion Simulation with the DK2 Motion System
The Sigma Integrale motion platform combines innovative technology, very reliable components, a compact design, and ultra-quiet operation, making it the ideal choice for both professional simulators and home cockpit setups. Whether used in racing, flight, or other simulation applications, the DK2 delivers high-performance motion feedback at an affordable price.

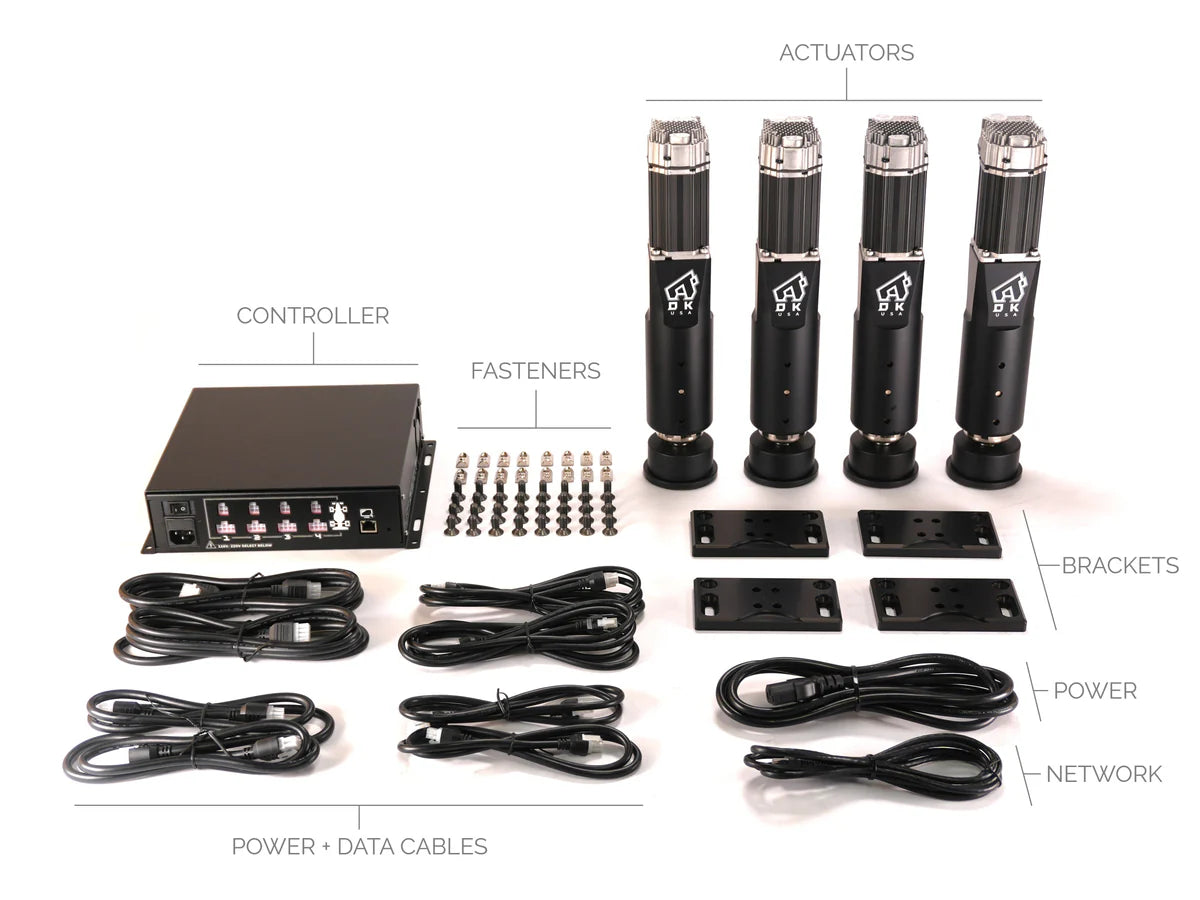

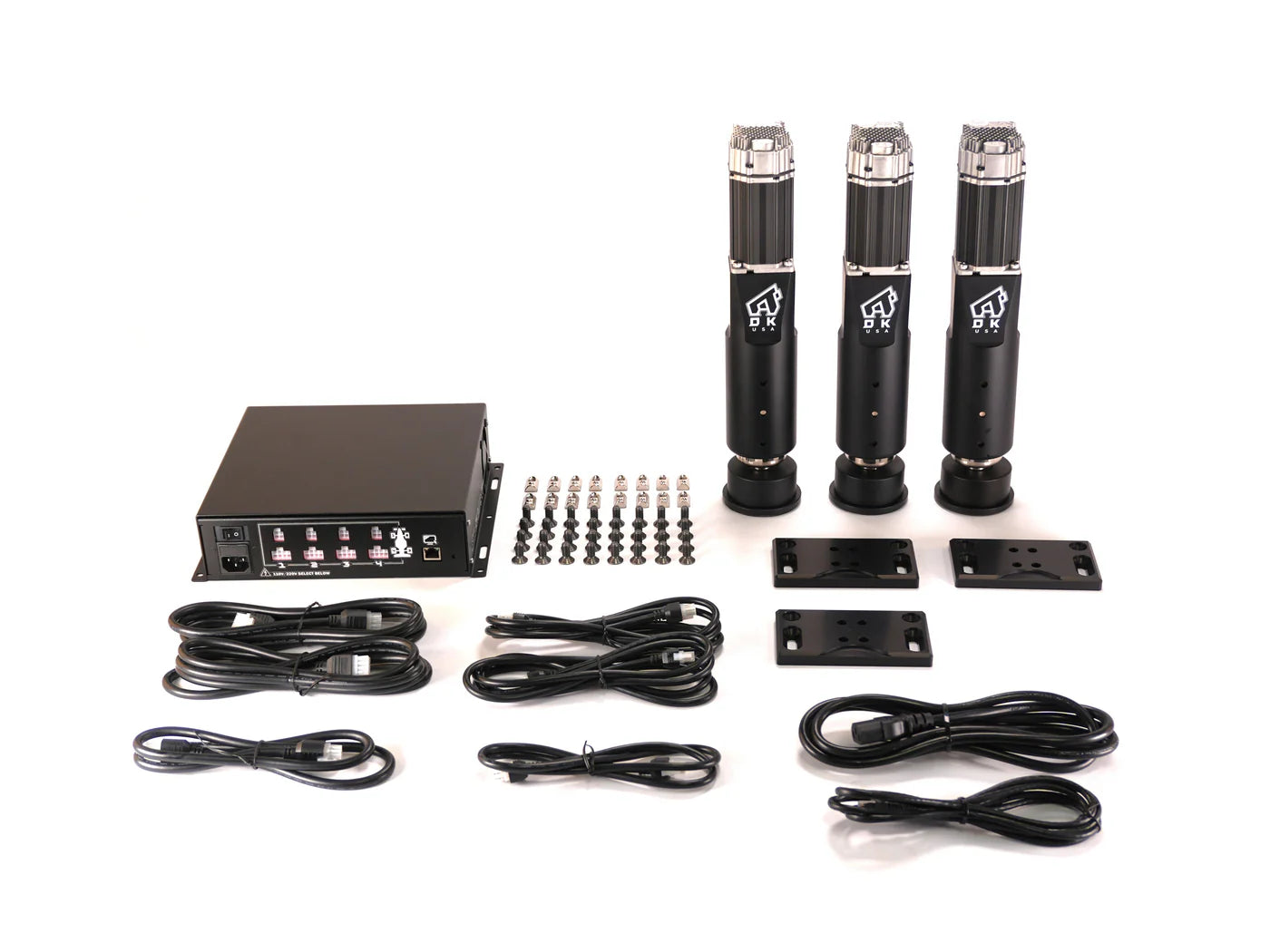

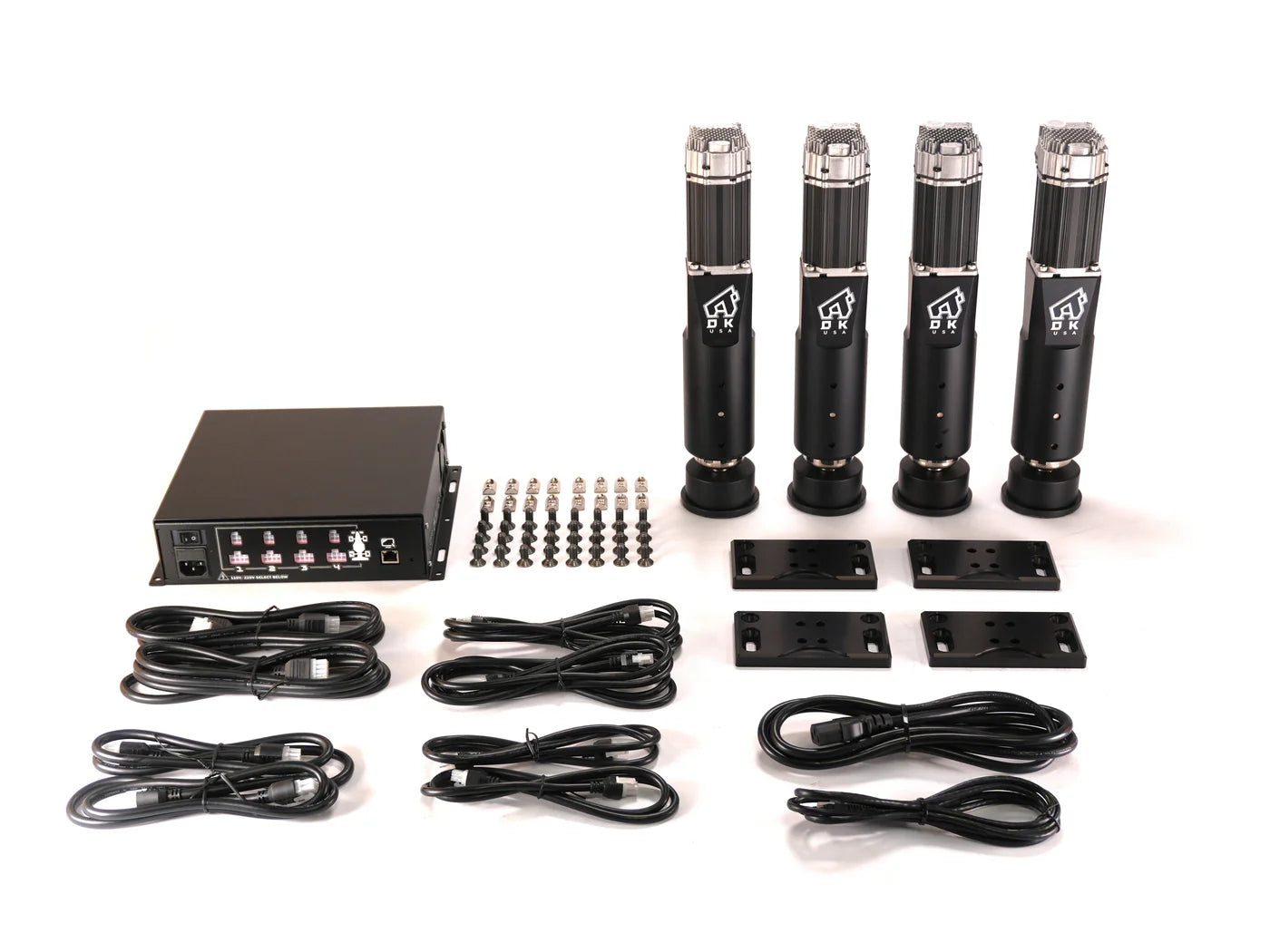

DK2 motion system 3-post to 4-post. The actuator + motor package come with the necessary shielded power and communications cables.
The fully functional actuator includes:
- 50mm (2”) actuator travel
- Maximum velocity of 800mm/s
- sustained speeds of 220mm/s
- Latency : 6ms
- Mono-block machined billet aluminum body
- All American made and assembled
- Max Weight Capacity = 240 kg for 3 actuators - 320 kg for 4 actuator setups
- Recommend Total Weight 225 kg. (for best performance)
No latency
Advanced electronics
By integrating a 32-bit real-time ARM core processor in the motion controller. The hardware handles velocity, acceleration, and jerk calculations, no delays from a software layer, setting it apart in the industry.
With this solution, the latency from the computer to the actuators, is similar than the latency from the computer to the monitor. Making your experience seemless.
CUSTOM MOTION SOFTWARE
THE BEST SOFTWARE
Developped in-house, constantly improved, the Sigma Integrale software is currently the most advanced motion software if you are looking for realism.
The proprietary algorithms delivers only motion based on game telemetry data. No artificial effects, 100% focusing on realism.
Our Dynamic Scaling algorithm optimizes actuator travel, enhancing experiences in flight and off-road games.
The remote UI app enables real-time tuning from your phone.
Easy installation
Mounting Brackets
The DK Motion systems are equipped with dedicated brackets. These brackets enables mounting the actuators onto popular aluminum extrusion based cockpits. An easy installation with the provided hardware.
Maintenance & Durability
Built to last
Currently the only actuators available to the public that was designed for commercial use. Wether you are using them 12 hours a day like a sim center or 1 hour a month, they are made to never need any maintenance, and be ready for your next race.
Leave them ON all the time if you want, they can go to sleep and wake-up when you launch your favorite sim.
Mechanically built with the best components and materials available, nothing was left to chance. No corners were cut for profit.
-
MADE IN THE USA
Designed, Engineered and Built in California by a bunch of engineers that invest everything into making the best products, the best after sales. But don't do any marketing like paying governement bodies for logos.
-
WARRANTY
All DK systems include a 3-year electrical and 1-year mechanical warranty. Extended warranty is available on demand.
